Technical Information

                      Hot Rolled Products

                            Hot Rolled Sheets And Plates
Alloy Product Temper Thickness(mm) Width (mm) Length (mm) Remarks
1xxx
3xxx
4xxx
5xxx
8xxx
sheet F 4-8 1000-1650 2000-6000 See Product mix.
1xxx
5xxx
plate O,H111 10-80 1000-1600 2000-6000



Hot Rolled Coils



Alloy Temper Thickness (mm) Width (mm) I.D. (mm) O.D. (mm) Remarks
1xxx F 4-8 1000-1650 600 2000 max. See Product mix.
3xxx
4xxx
5xxx
F 4-7
8xxx F 4-6

Cold Rolled Products*

           Coils & Strips
Type Alloy Temper Thickness
(mm)
Width (mm) I.D. (mm) O.D. (mm) Remarks
Not levelled 1xxx,3xxx
4xxx,5xxx
8xxx
Hxxx 0.3-2.5 400-1600 400,500,600 1100-1800 See
Product
mix.
Levelled 1xxx,3xxx
4xxx,5xxx
8xxx
Hxxx 0.3-2 400-1600 500,600 1100-1800
Embossed
coils*
1xxx Hxxx 0.5-1 400-1300 400,500
600
1100-1800



                                                 - Cardboard spool for coils < 1.0 mm thick Thickness

                                                 * Mechnical properties and tolerances acc. EN 485 standards / Astm B209



      Sheets

Alloy
Temper
Thickness (mm)
Width (mm)
Length (mm)
Remarks
1xxx,3xxx,4xxx,5xxx
Hxxx
0.5-8.0
1000-1600 2000-6000 See Product mix.

Embossed coils & Sheets *

Alloy
Temper
Thickness (mm)
Width (mm)
Length (mm)
Remarks
1050
H1x,H2x
0.5-1
400-1300 2000-6000 See Product mix.

                                                         * Mechanical properties and tolerances acc. EN 485 standards



                 Tread plates *

Alloy
Temper
Thickness (mm)
Width (mm)
Length (mm)
Remarks
3003,5754
1050,3103
5052
Hxx4
1.0-5.0 Base
1000-1600 2000-6000 See Product mix.

                                                                          * Mechanical properties and tolerances EN 1386 standards

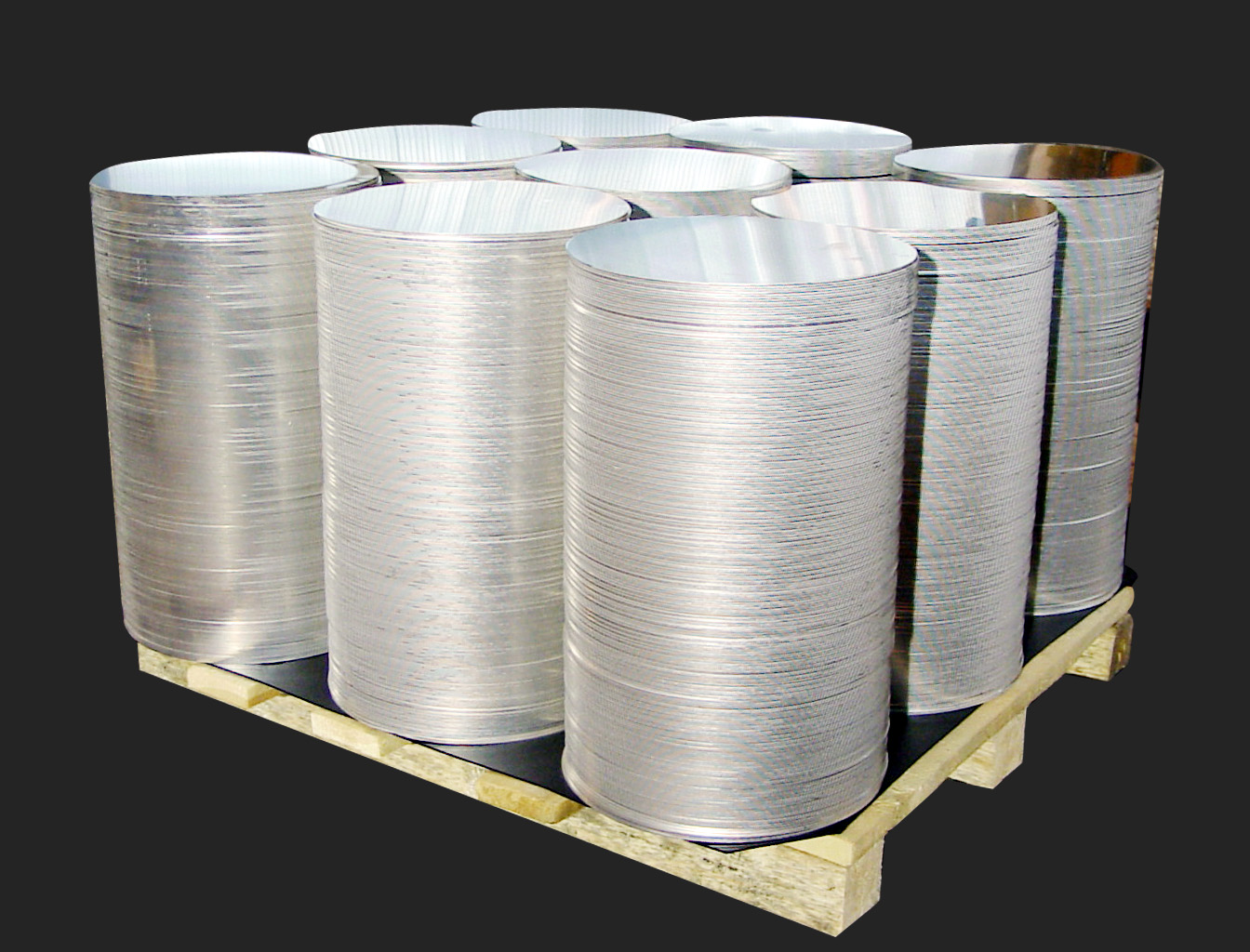

           Disc Products *

Type
Alloy
Temper
Thickness(mm)
Diameter(mm)
Remarks
Disc 1050 O,Hxx
0.8-3.5
250:450 step 5
+Other Special Sizes *
See Product mix.

                                                                    - Mechanical properties and tolerances according EN.
                                                                                                                                                                                                       * Other Special Sizes (170-180-190-200-210-220-230-240-460-470-480-490-500-520-540)
